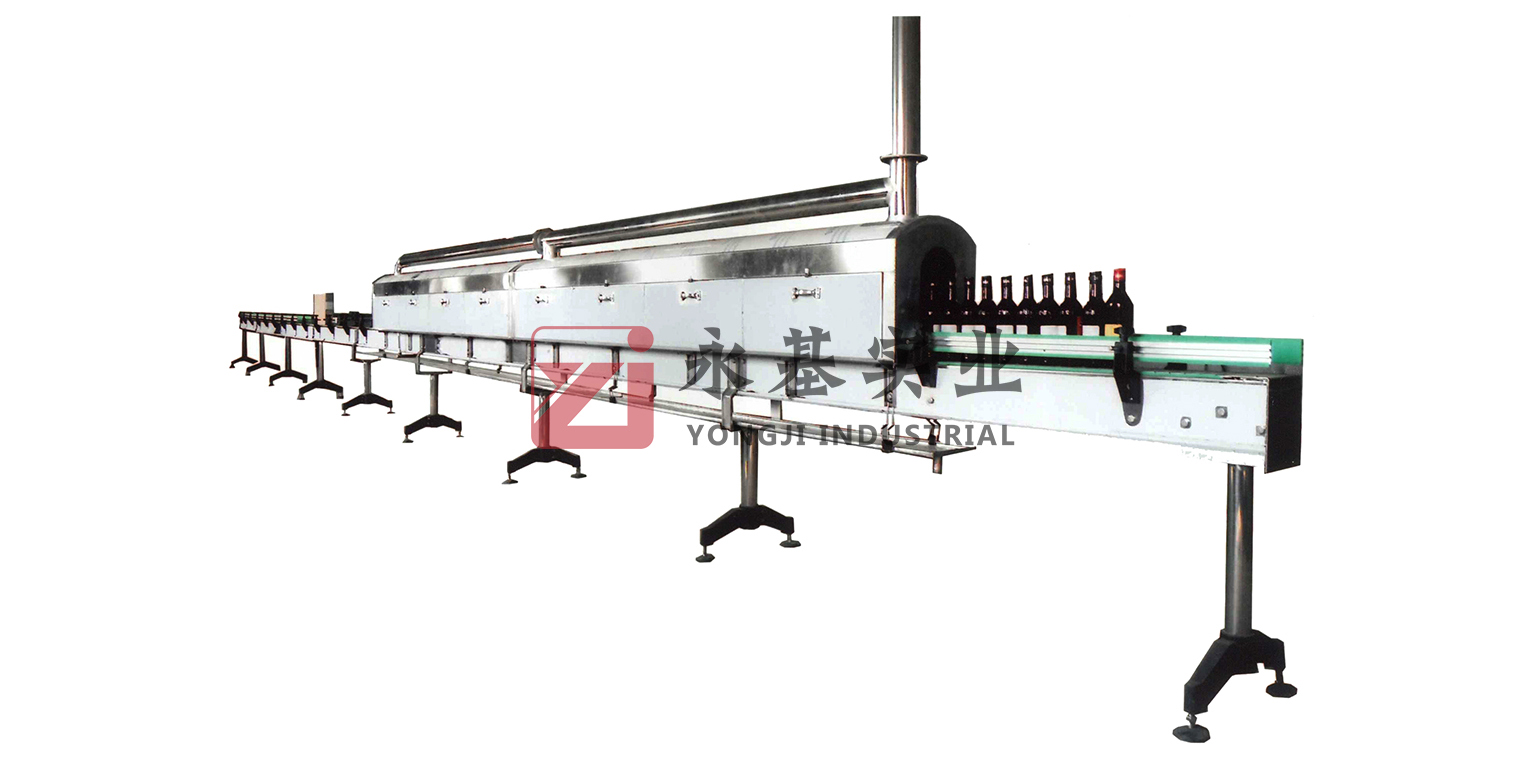

Empty Bottle Steam Sterilization Track

YJ-ZQSJ-6

Product Introduction: This equipment is used for the final sterilization process of empty bottles before bottling wine. The empty bottles pass through a high-temperature sterilization tunnel connected to steam, gradually increasing the temperature for sterilization, effectively killing residual microorganisms and bacteria inside the bottle before filling. This provides hygienic empty bottles for the finished wine, ensuring the stable quality of the finished product and extending its shelf life. This equipment uses less steam, has a high sterilization temperature, is easy to disassemble and clean, and is simple to maintain.

*It works in conjunction with the bottle filling production line.

Specifications Value
Tunnel Length: 6m (Length can be adjusted according to the actual situation of the manufacturer)
Sterilization Speed: 2000-4800 bottles per hour
Exit Temperature: Approximately 80°C
Applicable Bottle Shapes: Glass bottles, Ceramic bottles
Steam Inlet Temperature: ≥0.2Mpa
